WFLY X9 RC Car Transmitter | 2.4GHz 9CH LORA Surface Radio with RG206S Receiver

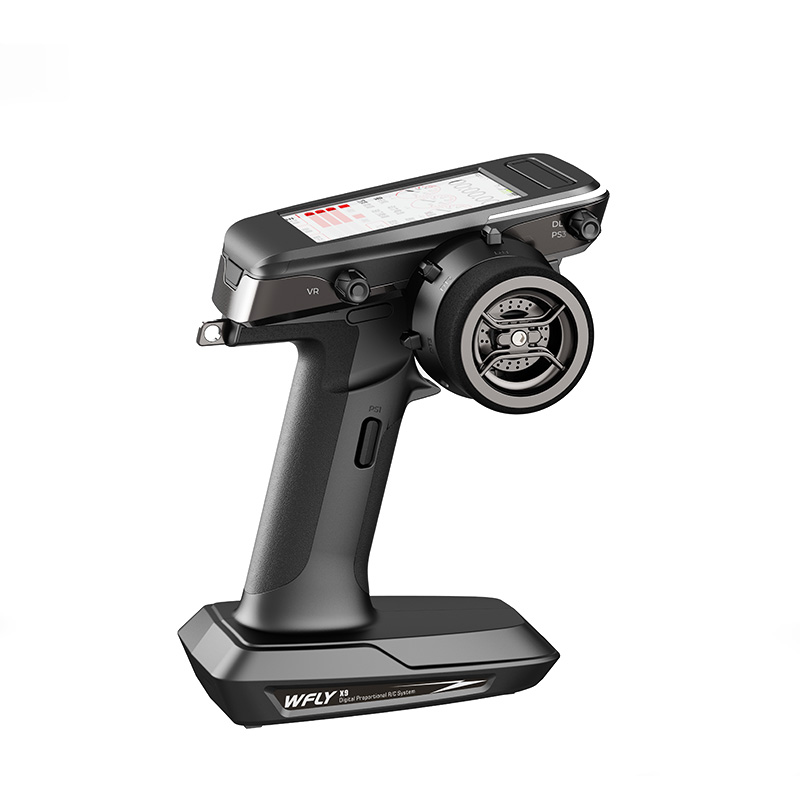

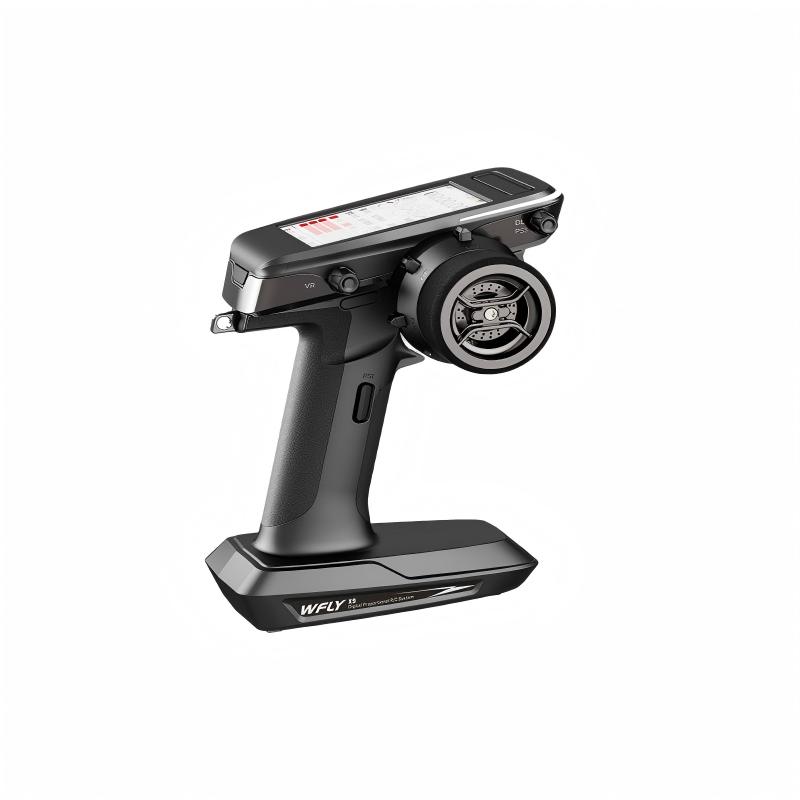

WFLY X9 RC Car Transmitter & RG206S Receiver
About WFLY X9 RC Car Transmitter
WFLY X9 is a professional 9CH 2.4GHz LORA surface radio, specially designed as a high-performance RC car transmitter with RG206S receiver. It features a 3.5-inch capacitive touch screen, voice assistant, GPS speed detection, and 4096 resolution, delivering stable control for RC cars, boats, tanks, crawlers and robots.
Adopting WFLY's 3rd-generation FHSS technology, the X9 offers ultra-low latency, strong anti-interference, and over 600m range in ideal conditions, making it ideal for both hobby racing and industrial model use.
WFLY X9 Transmitter Features & Parameters
| Model Type | X9 |
| Application | RC cars, boats, tanks, crawlers, robots |
| Channel | 9 channels |
| Frequency Band | 2.4GHz two-way transmission |
| Modulation | LORA |
| Frequency Hopping | FHSS |
| Transmission Power | ≤100mW |
| Control Range | ＞600m (ideal ground) |
| Display | 3.5-inch capacitive touch screen, 320*480 color |
| User Interface | Freely defined interface, multi-language support |
| Model Wizard | Pre-set profiles for car, crawler, boat, tank, motorcycle |
| GPS Function | Support real-time speed detection |
| Voice Assistant | Support voltage, timer, trim, and status broadcast |
| Model Memory | 40 models |
| Program Mix | 5 groups |
| Simulator Interface | 3.5mm PPM output |
| Upgrade | USB online upgrade |
| Battery Support | 3.5V-6V (1S Lipo) / 4x AA batteries |
| Charging | USB-C 1S Lipo charging |
| Working Current | 260-400mA |
| Temperature Range | -10℃~+60℃ |
| Dimension | 185*147*110mm |
| Weight | 318g |
RG206S Receiver Parameters
| Model | RG206S |
| Channel | 6 channels (PWM) |
| Frequency | 2.4GHz two-way transmission |
| Modulation | LORA |
| Frequency Hopping | FHSS |
| Resolution | Full channel 4096 |
| Working Voltage | 3.5V-9V |
| Working Current | 95mA |
| Protocol | Support W.BUS / S.BUS |
| GPS Function | Support speed detection |
| Voltage Detection | DC 1-36V external voltage detection |
| Servo Compatibility | Support 180°/270° servo |
| Temperature Range | -10℃~+60℃ |
| Upgrade | Wireless upgrade |
| Dimension | 33.5*22.0*12.5mm |
| Weight | 7.6g |
Package Included
1 x WFLY X9 Transmitter
1 x RG206S Receiver
1 x 18650 Battery Tray
1 x User Manual
1 x Radio Screen Protector
1 x Radio Runner Foam
1 x Oxford Canvas Handbag
Why Choose WFLY X9 RC Car Transmitter
Designed by a Red Dot Award-winning team, the WFLY X9 RC car transmitter offers a fully customizable interface, pre-set model profiles, and smart safety features like servo travel limit protection to prevent mechanical damage.
With built-in GPS speed detection, voice assistant, and long-range LORA communication, the X9 provides a reliable, feature-rich control solution for RC car enthusiasts, crawler builders, and industrial model users worldwide.
Get QuoteContact Us
For WFLY X9 wholesale, OEM customization or technical support, please contact us directly.
